Towards Auto-Annotation from Annotation Guidelines: A Benchmark through 3D LiDAR Detection

Code

Abstract

A crucial yet under-appreciated prerequisite in machine learning solutions for real-applications is data annotation: human annotators are hired to manually label data according to detailed, expert-crafted guidelines. This is often a laborious, tedious, and costly process. To study methods for facilitating data annotation, we introduce a new benchmark AnnoGuide: Auto-Annotation from Annotation Guidelines. It aims to evaluate automated methods for data annotation directly from expert-defined annotation guidelines, eliminating the need for manual labeling. As a case study, we repurpose the well-established nuScenes dataset, commonly used in autonomous driving research, which provides comprehensive annotation guidelines for labeling LiDAR point clouds with 3D cuboids across 18 object classes. hese guidelines include a few visual examples and textual descriptions, but no labeled 3D cuboids in LiDAR data, making this a novel task of multi-modal few-shot 3D detection without 3D annotations. The advances of powerful foundation models (FMs) make AnnoGuide especially timely, as FMs offer promising tools to tackle its challenges. We employ a conceptually straightforward pipeline that (1) utilizes open-source FMs for object detection and segmentation in RGB images, (2) projects 2D detections into 3D using known camera poses, and (3) clusters LiDAR points within the frustum of each 2D detection to generate a 3D cuboid. Starting with a non-learned solution that leverages off-the-shelf FMs, we progressively refine key components and achieve significant performance improvements, boosting 3D detection mAP from 12.1 to 21.9! Nevertheless, our results highlight that AnnoGuide remains an open and challenging problem, underscoring the urgent need for developing LiDAR-based FMs. We release our code and models at GitHub: https://annoguide.github.io/annoguide3Dbenchmark

Problem Formulation and Benchmarking Protocol

1

Screenshots of annotation guidelines released with the nuScenes dataset. (a) The guidelines instruct human annotators to label LiDAR points with 3D cuboids for specific object classes. (b) Each object class is defined by a few visual examples and nuanced textual descriptions (ref. the red box) without 3D cuboid annotations. Human annotators must interpret and apply these guidelines to manually generate 3D cuboids. (c) We visualize the 3D annotations in both RGB images and the Bird's-Eye-View (BEV) of the LiDAR point cloud.

Methodology: Lifting 2D Detections to 3D

1

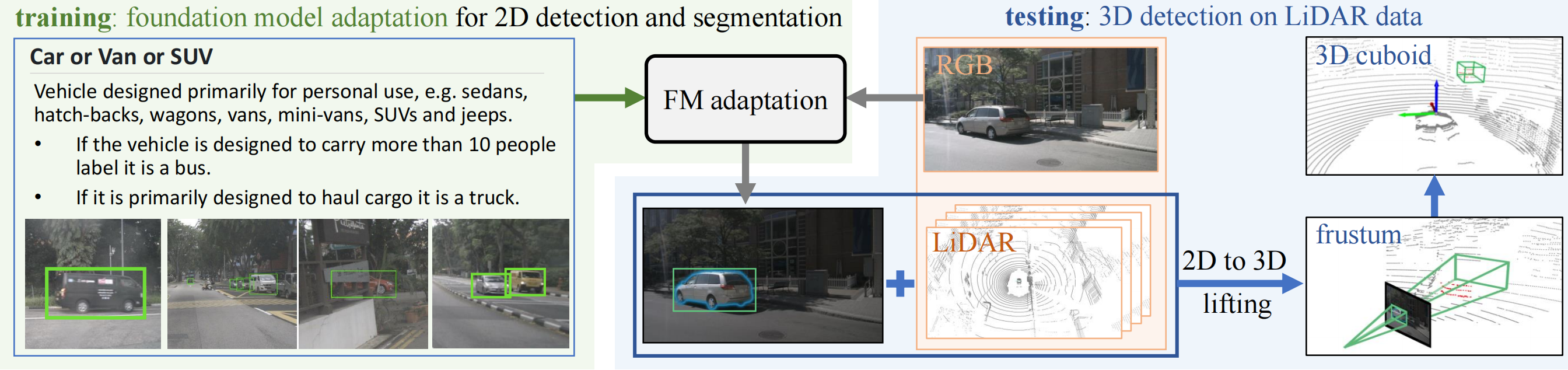

We adopt a pipeline to solve AnnoGuide by adapting open-source foundation models (FMs). Specifically, over the visual examples and textual descriptions that define object classes of interest, we adapt a Vision-Language Model (VLM) and a Vision Foundation Model (VFM) for object detection and segmentation. The adapted FMs produce decent 2D detections on unlabeled RGB frames. With the aligned LiDAR and RGB frames, we lift each 2D detection to 3D, locate corresponding LiDAR points, and generate a 3D cuboid as the 3D detection. We delve into FM adaption and 3D cuboid generation, and improve them in this work.

2D Detection by Multi-Modal Few-Shot Finetuning

1

For each targeted class name, we use a pretrained VLM (GPT-4o in this work) to find a list of terms that match the textual description and visual examples provided in the annotation guidelines. We then test each term and its combinations to search the best one that maximizes the zero-shot detection performance of a foundational object detector (GroundingDINO in this work) on the validation set. We use the best term (or term combination) to finetune the foundational detector, yielding notable improved performance.

1

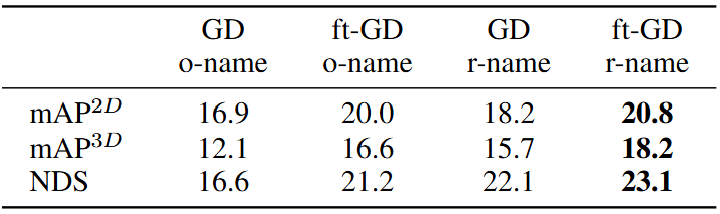

Different strategies of finetuning foundational 2D detectors yield different 3D detection performances. For 3D cuboid generation, we use CM3D. Recall that we refine class names using an off-the-shelf VLM. With the GroundingDINO (GD) 2D detector, replacing the original class names (``o-name'') with refined class names (``r-name'') yields better zero-shot detection performance. Importantly, finetuning GD (ft-GD) using r-name performs the best.

3D Cuboid Generation by Multi-Hypothesis Testing

1

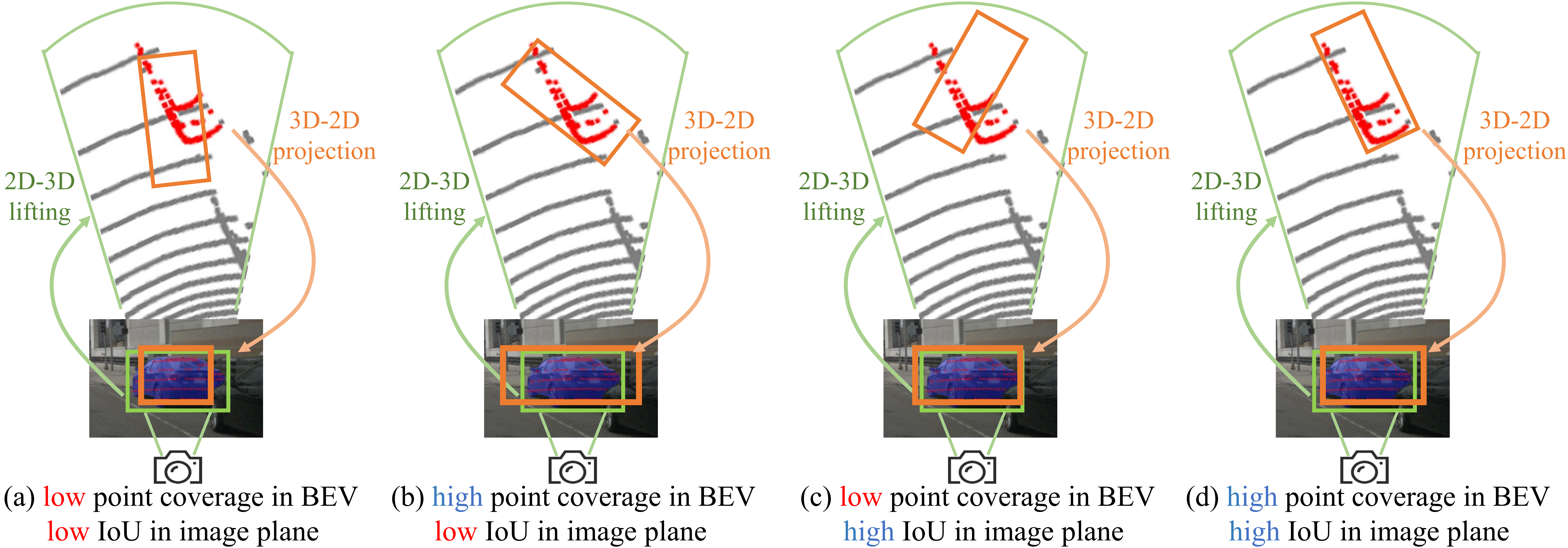

Generating a 3D cuboid based on LiDAR points is challenging as points can be from occlusders and backgrounds. For example, (a) LiDAR points projected on a bicycle can be from background through wheels; (b) points projected on a car can be from a fence occluding the car; (c-d) points projected on a car can be background through the windows and windshield of the car.

1

We generate a 3D cuboid for the 2D detected object through Multi-Hypothesis Testing (MHT). In the frustum projected from the 2D detection, we locate the LiDAR points that lie in the mask of the 2D detected object (when projected from 3D to 2D image plane). For the recognized car, we use the prior size obtained by prompting GPT-4o to fit the LiDAR points in 3D BEV. We define a list of angular rotations and translation step sizes to measure their point coverage in BEV and IoU on the image plane, and find the best-fitting one that yields the highest point coverage and IoU. Our method outperforms existing ones.

1

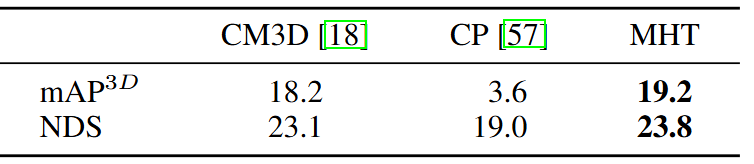

We compare different 3D cuboid generation methods, including our heuristic baseline, CM3D, a 3D detector CenterPoint (CP) trained on the Argoverse2 LiDAR data, and our MHT-based method. Surprisingly, the trained 3D detector CP yields poor performance. We believe the reason is the discrepancy between LiDAR models of the nuScenes and Argoverse2 datasets. We compare the specifics of the LiDAR models of the Supplement. Our MHT-based method performs the best.

More Technical Enhancements

1

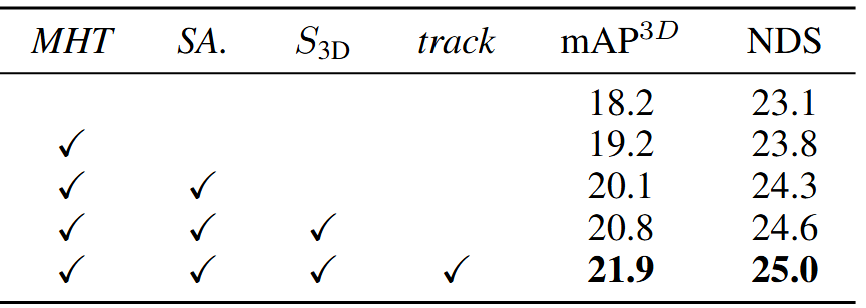

Our proposed techniques improve 3D cuboid generation. The first row shows results of a method that adopts our finetuned GroundingDINO for 2D detection and CM3D~\cite{khurana2024shelf} for 3D cuboid generation. MHT standards for Multi-Hypothesis Testing for 3D cuboid generation; ``SA.'' uses class-aware sweep aggregation; S3D incorporates 3D geometric cues to score generated 3D cuboids; ``track'' means using 3D tracks to refine scores of generated cuboids. Results demonstrate the effectiveness of each technique in improving 3D cuboid generation.

Visualizations

1

Visualization of detection results on four testing examples. For each example, we display 2D detections, and 3D detections (i.e., the generated 3D cuboids) projected onto the RGB image and the BEV of LiDAR data. Visual results show that our method decently detects objects that are in far field and small in size, which are usually challenging to detect.
